SCU4CH

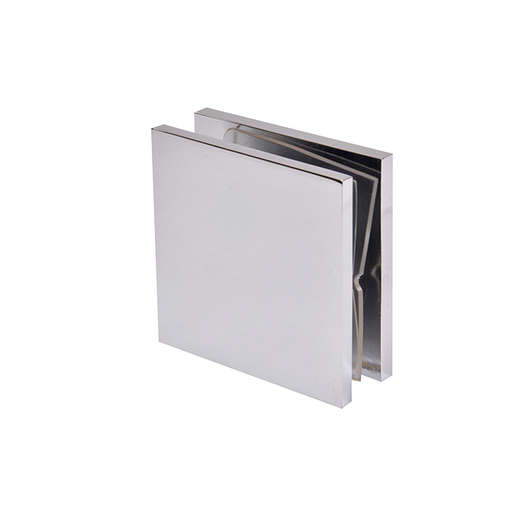

CRL Square Style Hole-in-Glass Fixed Panel U-Clamp

Price range: $14.00 through $17.00

CRL Square Wall Mount Clamp (Hole-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16″ (5 mm). Clear silicone can be used to provide a clean, water-tight seal.

- +
SKU: N/A Categories: , , , Tags: , Brand:
Product Overview
  • For 3/8″ to 1/2″ (10 to 12 mm) Glass
  • Glass Fabrication: 5/8″ or 3/4″ (16 or 19 mm) Hole in Panel
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an ‘All-Glass’ Look
  • Glass Fabrication Required to Accommodate Clamps
  • Use Monolithic Tempered Glass

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8″ to 1/2″ (10 to 12 mm)
Glass Fabrication Required: SGCU1 Requires Notch; SCU4, SGC037, and SGC039 Require 3/4″ (19 mm) Holes
Includes: Mounting Screws and Gaskets

Weight N/A
Dimensions N/A
Color

Brushed Nickel, Matte Black, Brushed Bronze
